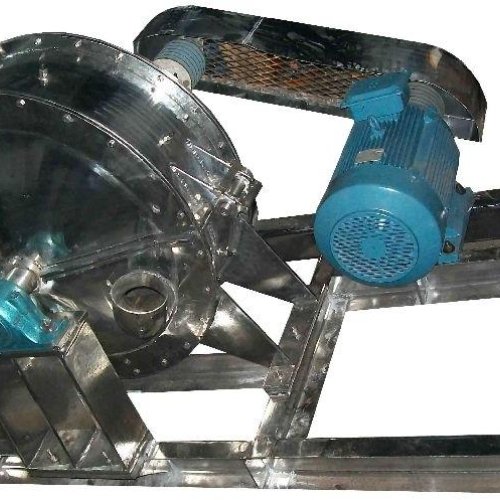

Impact Pulverizer



Screenless Impact Pulverizer consists of an encased rotor carrying swinging hammers wizard classifier for fineness regulation. The material is fed from the feed hopper and material pulverizer into grinding chamber. The grinded material is then carried towards the wizard classifier for classification, and the oversized materials are rejected by the wizard and returned to the crushing chamber. The crushed material conveyed by blower into the cyclone for blower into the cyclone for collection and packaging. It has a dust free operation and no loss of power.



Known For :

  • Robust frame
  • High performance
  • Sharp blades
  • No loss of powder
  • Easy to use


Used For :

  • Turmeric
  • Udad dal
  • Tamarind
  • Seeds
  • Coconut shell
  • Dry chemicals
  • Pigments
  • Minerals


Technical Specifications

Model

Grinding chamber Dia

Chamber width

Power required HP

CE 200

200

150

7.5

CE 300

300

175

15 to 20

CE 500

500

250

25 to 30

CE 600

600

300

30 to 50

CE 800

800

350

50 to 75
